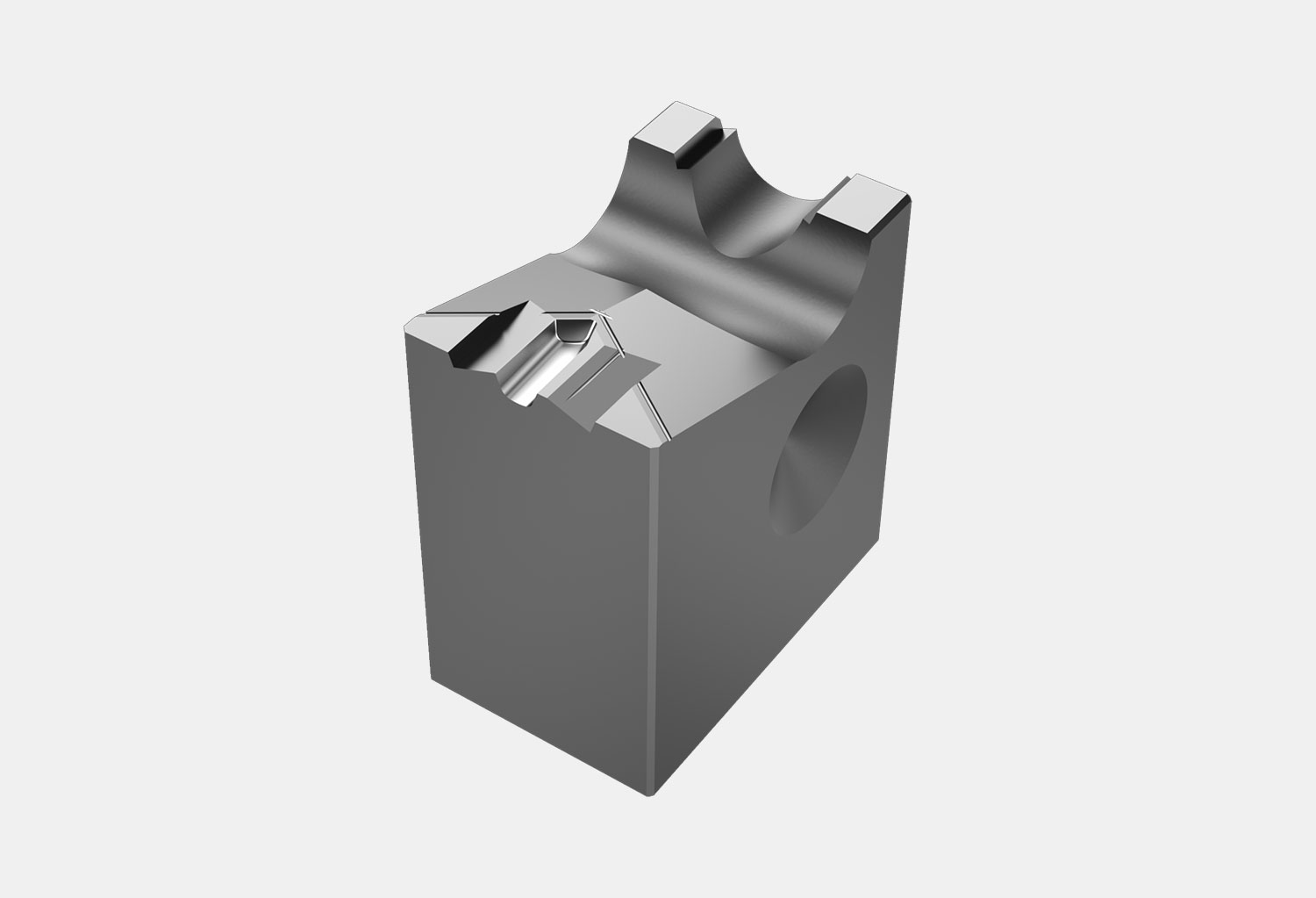

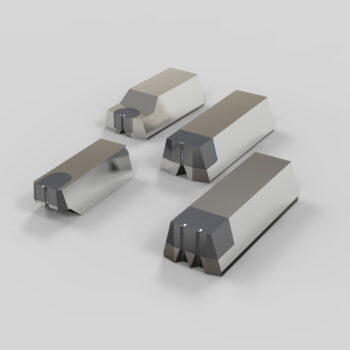

Matriz de punta de taladro

matkap ucu bicagi uretimi

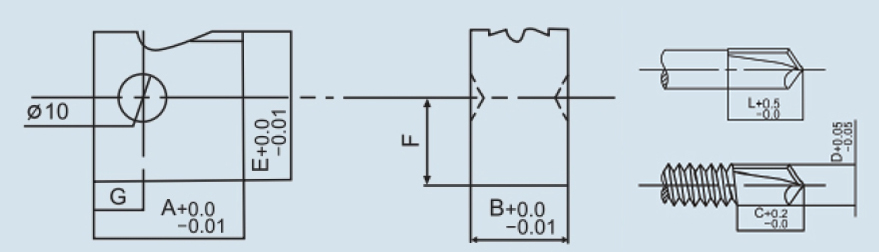

DIE STYLE A B E F G
STYLE 1 (MA SIZE) 31.75 12.70 25.40 11.40 10.70
STYLE 2 (MB SIZE) 31.75 20.00 32.00 18.00 10.70
STYLE 3 (MC SIZE) 45.00 30.00 32.00 16.00 16.00
NO 1 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L1-22 2.2 2.7 2.7 1.0 STYLE 1 STYLE 2
L1-23 2.3
L1-27 2.7 3.4 2.4 1.5
L1-28 2.8
L1-29 2.9
L1-30 3.0
L1-31 3.1
L1-32 3.2 4.2 3.2 2.1
L1-33 3.3
L1-34 3.4
L1-35 3.5
L1-36 3.6
L1-37 3.7 5.0 4.0 2.8
L1-38 3.8
L1-39 3.9
L1-40 4.0
L1-41 4.1
L1-43 4.3 6.0 5.0 3.6 STYLE 2
L1-45 4.5
L1-47 4.7
L1-49 4.9 7.2 6.2 4.5
L1-51 5.1
L1-53 5.3
L1-55 5.5
L1-57 5.7
NO 3 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L3-27 2.7 4.7 3.7 2.8 STYLE 1 STYLE 2
L3-28 2.8
L3-29 2.9
L3-30 3.0
L3-31 3.1
L3-32 3.2 5.7 4.7 3.6
L3-33 3.3
L3-34 3.4
L3-35 3.5
L3-36 3.6
L3-37 3.7 6.7 5.7 45
L3-38 3.8
L3-39 3.9
L3-40 4.0
L3-41 4.1
L3-43 4.3 7.7 6.7 5.3 STYLE 2
L3-45 4.5
L3-47 4.7
L3-49 4.9 9.0 8.0 6.3
L3-51 5.1
L3-53 5.3
L3-55 5.5
L3-57 5.7
NO 2 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L2-22 2.2 3.2 2.2 1.5 STYLE 1 STYLE 2
L2-23 2.3
L2-27 2.7 4.0 3.0 2.1
L2-28 2.8
L2-29 2.9
L2-30 3.0
L2-31 3.1
L2-32 3.2 4.9 3.9 2.8
L2-33 3.3
L2-34 3.4
L2-35 3.5
L2-36 3.6
L2-37 3.7 5.8 4.8 3.6
L2-38 3.8
L2-39 3.9
L2-40 4.0
L2-41 4.1
L2-43 4.3 6.9 5.9 4.5 STYLE 2
L2-45 4.5
L2-47 4.7
L2-49 4.9 8.0 7.0 5.3
L2-51 5.1
L2-53 5.3
L2-55 5.5
L2-57 5.7
NO 4 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L4-43 4.3 8.7 7.7 6.3 STYLE 2
L4-45 4.5
L4-47 4.7
L4-49 4.9 11.7 10.7 9.0 STYLE 3
L4-51 5.1
L4-53 5.3
L4-55 5.5
L4-57 5.7
NO 5 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L5-49 4.9 14.7 13.7 12.0 STYLE 3
L5-51 5.1
L5-53 5.3
L5-55 5.5
L5-57 5.7
NO 6 DRILL POINT DIES
DP DIE CODE DRILL  DIA (DØ) FLUTE LENGTH (L) DRILL LENGTH © MAX MATERIAL THICKNESS DP DIE STYLE
L6-49 4.9 17.7 16.7 15.0 STYLE 3
L6-51 5.1
L6-53 5.3
L6-55 5.5
L6-57 5.7
